Portable Pick and Carry Mini Cranes

The Flexible MicroCranes® M1 Global Offers a Range of Advantages

FEATURES: 2,000 lb. capacity (905kg). Safety factor (1.5). 20 ft. hook ht. (6.1m). 25 ft. hook ht. w/ jib extension. 5:1 rated, 100-160 ft. galvanized aircraft cable. 35 FPM line speed battery powered version. 11 FPM line speed electric 115v/230v version (variable speed add on option allows speeds down to 1 FPM for precision lifting). Rooftop working depth to 7 stories (13 stories using electric version). 5:1 rated hook w/ safety latch. Pick & carry, rotate or swing loads using rear steering. Stow hook. Lift points for hoist rings. Anti two block device. 4 section pull out telescopic boom. 24v battery power w/ CEC, UL, FCC & CE certified on board charger. Fits in 32 inch doorways, elevators, truck beds, trailers, stairwells. Made in the USA. Units come fully assembled. 2 Year warranty. CE certified. ISO 9001 certified. Built to exceed ASME, PALD, OSHA, CAN/CSA B167-16 Canadian standards. Low noise levels and eco-friendly to meet EPA standards. No hoist operator license required. Minimal inspection guidelines. Minimal user training requirements.

Work indoors (won't scuff flooring). Work outdoors (with mats on dirt, grass or gravel). Work high (boom extends to a 22 ft. tip ht.). Work forward/reach out (boom extends 12 ft. forward beyond the front wheels). Work low (hoist materials down 7 stories, or 13 stories using electric winch accessory). Work up & over (boom over obstacles like parapet walls, atriums, barriers or railings).

Multiple machines in one: Use as a floor crane, a material lifter, a roof crane, a swivel hoist, a davit crane, engine hoist, deck crane, rigging hoist, stage rigging, gantry crane, overhead crane, utility crane, a truck crane or portable material hoist.

Lifting capacities: 1 ton, 1/2-ton, 300 lb., 400 lb., 500 lb., 600 lb., 700 lb., 800 lb., 900 lb., 1000 lb., 1100 lb., 1200 lb., 1300 lb., 1400 lb., 1500 lb., 1600 lb., 1700 lb., 1800 lb., 2000 lbs.

Lifting heights/ground to hook: 6ft, 8ft, 10ft, 12ft, 14ft, 16ft, 18ft, 21ft.

Breaks down (for even easier transport): by removing counterweights, rear sliding rack, boom. Microcranes® are designed to fit through a 36 in. doorway & inside vans, trucks & elevators fully assembled. It also breaks down to combine with tracked stair climbing solutions to transport up staircases/stairwells. Hoist rings can be applied for larger cranes to rig the unit up to a rooftop. This flexibility allows transportation around any jobsite and the ability to work in hard to reach & confined spaces.

By placing the crane hoist on the roof, you can lower/drop material loads down sides of buildings at depths to 7 stories. (13 stories using electric winch accessory and overhaul ball.) Use for search and rescue missions, debris removal, installation, cladding, repairs and maintenance.

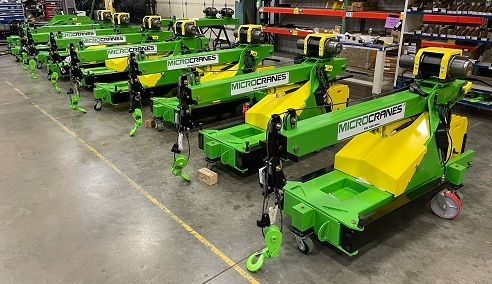

Each mini crane undergoes rigid quality control, is made in America and come fully assembled. The design allows rapid deployment of the equipment (sets up in minutes), easy storage, easy transport and ease of use.

“Useful in the field for quick set-ups, and easy to transport around on a trailer or truck. It’s a reliable asset to help maintenance and repair on aircraft and military equipment in the field or in hangars.”

J. Stephenson / US Airforce

"It has proven to be a great machine that has increased our productivity with our unitized glass curtain wall installation."

E. Strasz, TMI Windows

M1 Global Mini Crane

Portable Pick and Carry Mini Crane
