Microcranes® produces high quality portable mini cranes and material lifting equipment that help streamline and improve your workplace productivity. Made in America, our product gives you ongoing time and cost efficiency, saving you money on every job you do and providing a good return on your dollar investment.

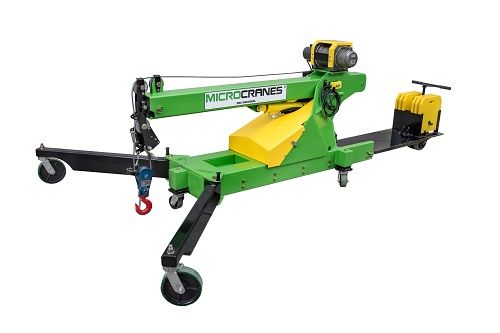

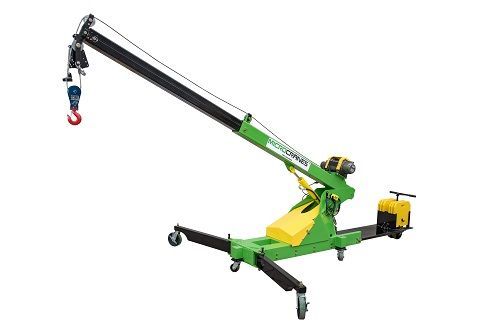

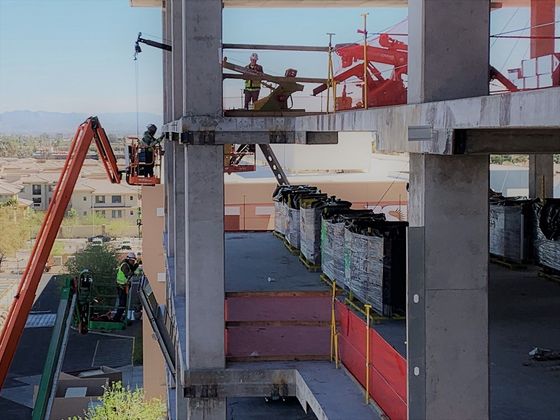

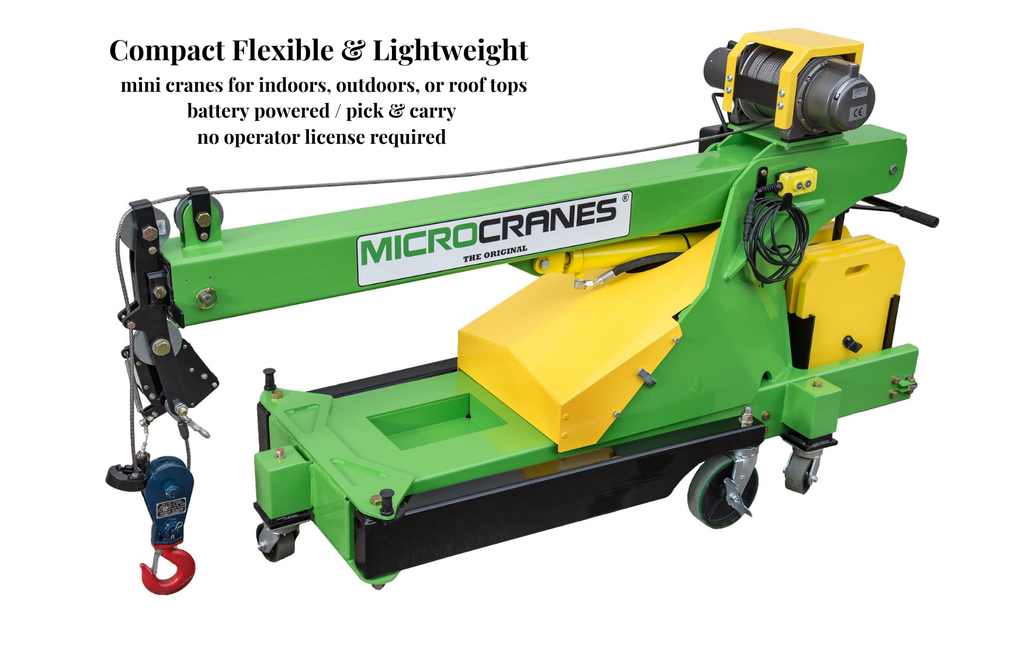

Easy to move from job to job, our highly mobile hoist/mini cranes are nimble enough to move easily on floor-to-floor jobs, as well as function efficiently on rooftops. Utilizing a patented counterweight and outrigger system the modern, versatile M1 Global Model operates in a convenient, compact footprint. This efficient design allows our cranes to fit inside elevators, into tight spaces, through tight doorways, aisles, and hallways plus narrow access platforms and confined areas with obstacles and difficult angles.
Functioning as either a stationary floor crane or mini roof crane, the Microcranes® M1 Global Model transports easily between jobs using a van, truck, or elevator. Our patented base structure folds out easily and is designed to both pick up and carry loads safely. Environmentally friendly with low sound levels and zero emissions, our versatile and portable mobile hoists are made to lift, drag, drop, tug, pull, carry, stack, transport, move, shift, install, plus hold and set materials and heavy loads in any situation.
FEATURES:
2,000 lb. capacity (905kg). Safety factor (1.5). 20 ft. hook ht. (6.1m). 25 ft. hook ht. w/ jib extension. 5:1 rated, 100-160 ft. galvanized aircraft cable. 35 FPM line speed battery powered version. 11 FPM line speed electric 115v/230v version (variable speed add on option allows speeds down to 1 FPM for precision lifting). Rooftop working depth to 7 stories (13 stories using electric version). 5:1 rated hook w/ safety latch. Pick & carry, rotate or swing loads using rear steering. Stow hook. Lift points for hoist rings. Anti two block device. 4 section pull out telescopic boom. 24v battery power w/ CEC, UL, FCC & CE certified on board charger. Fits in 32 inch doorways, elevators, truck beds, trailers, stairwells. Made in the USA. Units come fully assembled. 2 Year warranty. CE certified. ISO 9001 certified. Built to exceed ASME, PALD, OSHA, CAN/CSA B167-16 Canadian standards. Low noise levels and eco-friendly to meet EPA standards. No hoist operator license required. Minimal inspection guidelines. Minimal user training requirements.
Work indoors (won't scuff interior flooring). Work outdoors (use on dirt, grass or gravel with crane mats).
Work high (jib extension booms up to a 25 ft. hook height). Work forward/reach out (boom extends 12 ft. forward beyond the front wheels for hard to reach spaces and confined areas). Work low (hoist materials down 7 stories, or 13 stories using electric winch and overhaul ball). Work up & over (boom over obstacles like parapet walls, atriums, barriers or railings).
